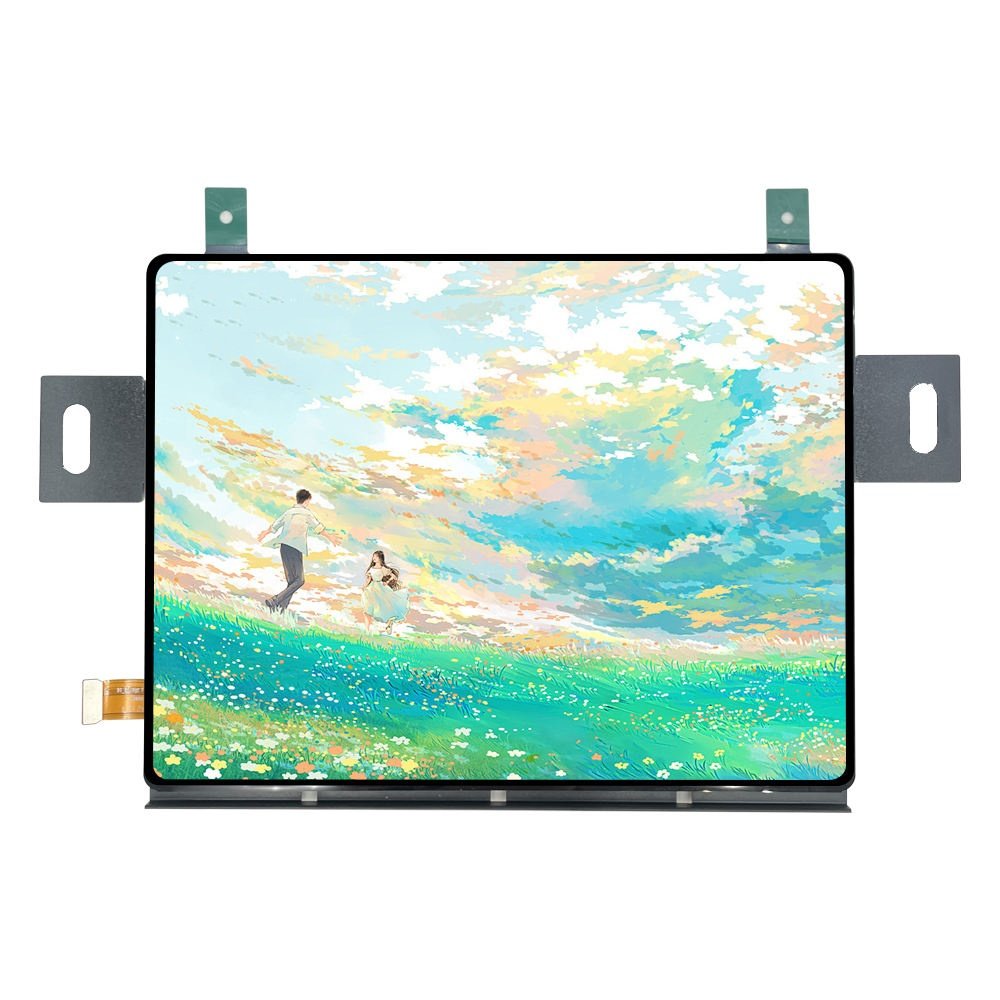

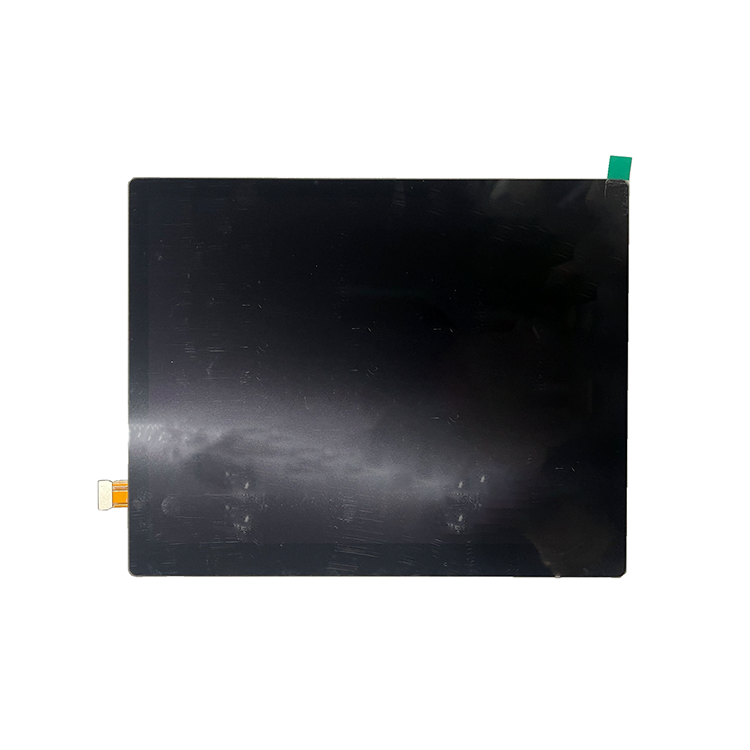

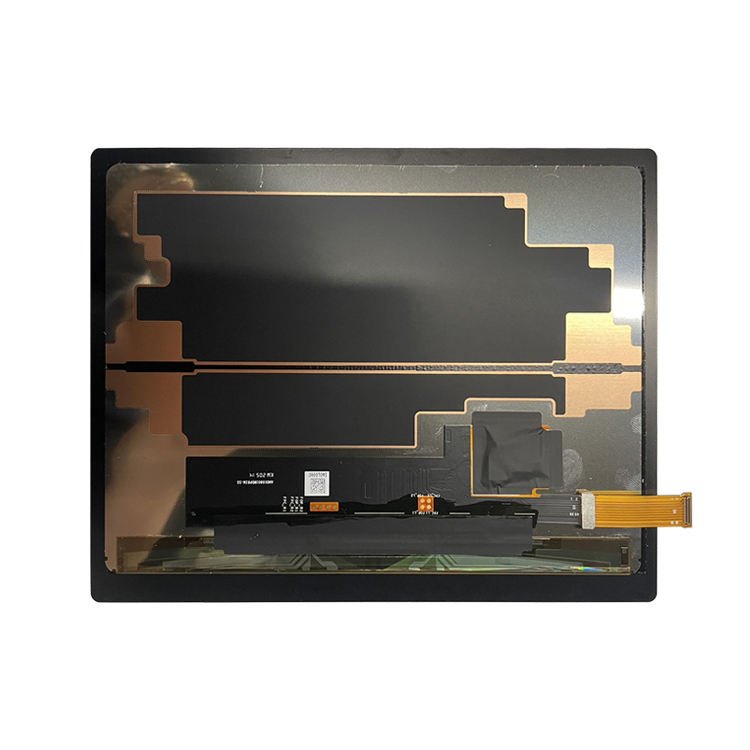

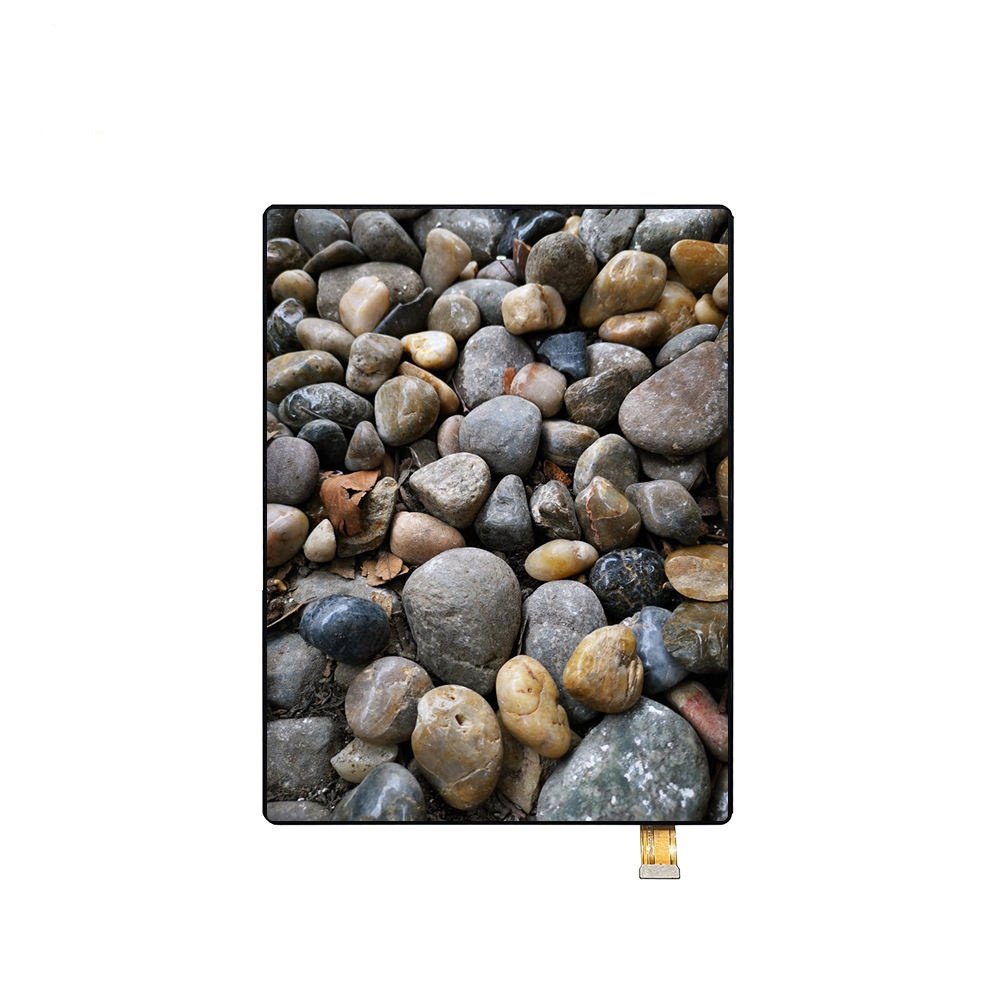

The 8.0-inch flexible AMOLED display is a color active-matrix AMOLED Module using Low-Temperature Poly-soliton TFTs (Thin Flim Transistors) as active switching devices. This module has an 8.0-inch diagonally measured active area with resolutions(2480 horizontal by 1860 vertical pixel arrays). Each pixel is divided into RED, GREEN, and BLUE dots which are arranged in vertical stripes and this module can display 16.7M colors.

1.1 Features

1.1.1   8.0” Flexible AMOLED Panel

1.1.2  Supported 4:3 FHD(2480×1860 pixels) Resolution

1.1.3 Green Design

1.1.4 Driving Frequency: support 60Hz;

2. Warranty:

The warranty term is 12 months of reliability characteristics of the quality level after the outgoing date in our company and we could compensate for defectives which happen within the warranty term under the condition that the products should be stored or be used as specified under normal conditions within the contents of the specification.

Otherwise, it is impossible to compensate for defects when they happen to customers’ mistakes such as careless handling or circuit change, etc. And after 12 months of the warranty term, all replacements for defectives will be charged.

3. Application:

1. Smartphones
2. Wearable devices
3. Smart devices

4. Product Description:
