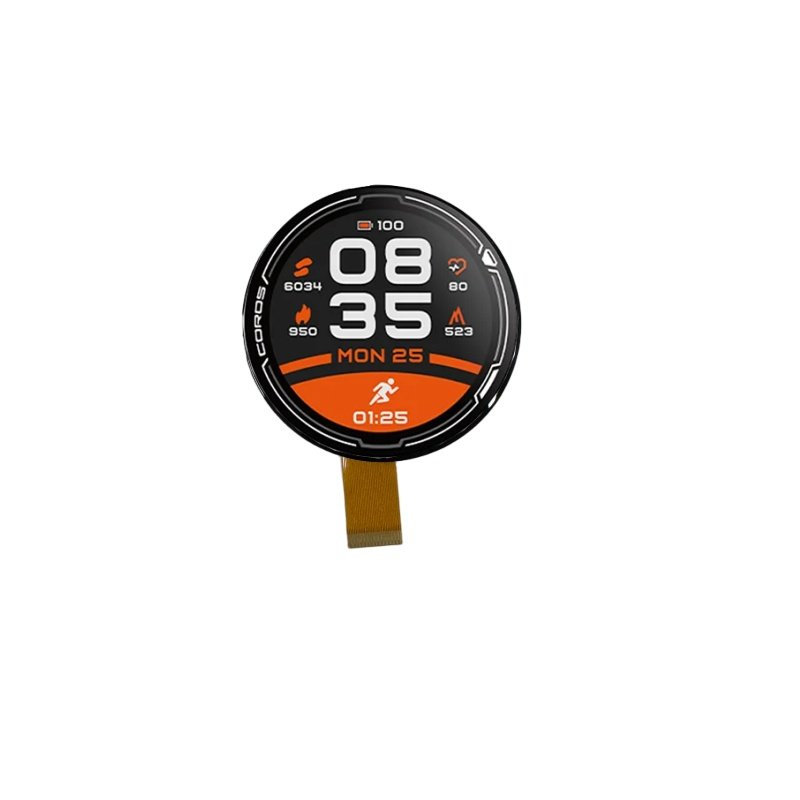

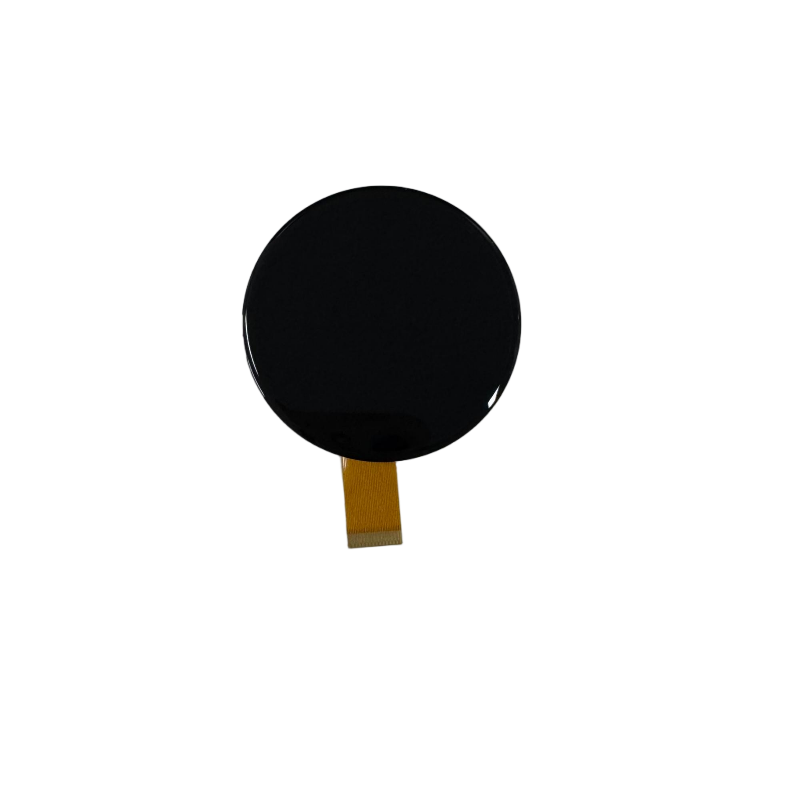

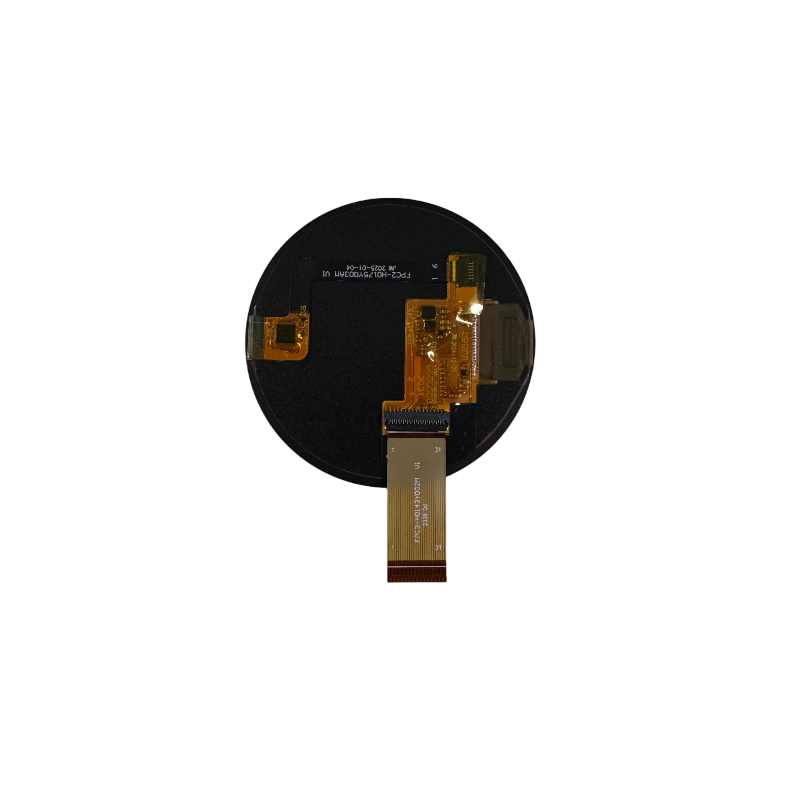

Display model GL173AMC10C is a color-active matrix thin film transistor(AMOLED)liquid crystal display with oncell capacitive touchscreen and a custom cover glass that uses amorphous silicon TFT as a switching device. This OLED Display has a 1.73-inch diagonally measured active display area with (466horizontal by 466 vertical pixels)resolution.
| Model No. | GL173AMC10C |
|---|---|
| MOQ | 3000pcs |
| Lead Time | 7 Working Days For Samples. |
| Payment Term | Paypal, T/T |
| Statu | Production |
| Customization | Support |
| Availability | 3 to 5 Years Stable Supply |
1. Introduction
Display model GL173AMC10C is a color-active matrix thin film transistor(AMOLED)liquid crystal display with oncell capacitive touchscreen and a custom cover glass that uses amorphous silicon TFT as a switching device. This OLED Display has a 1.73-inch diagonally measured active display area with (466horizontal by 466 vertical pixels)resolution.
2. Warranty:
The warranty term is 12 months of reliability characteristics of the quality level after the outgoing date in our company and we could compensate for defectives which happen within the warranty term under the condition that the products should be stored or be used as specified under normal conditions within the contents of the specification.
Otherwise, it is impossible to compensate for defects when they happen to customers’ mistakes such as careless handling or circuit change, etc. And after 12 months of the warranty term, all replacements for defectives will be charged.
3. Product Features
| Features | Specification | Unit |
|---|---|---|
| Display Size(Diagonal) | 1.73 | inch |
| Resolution | 466RGB*466 | |
| Display Mode | AMOLED | |
| Display Colors | 16.7M | |

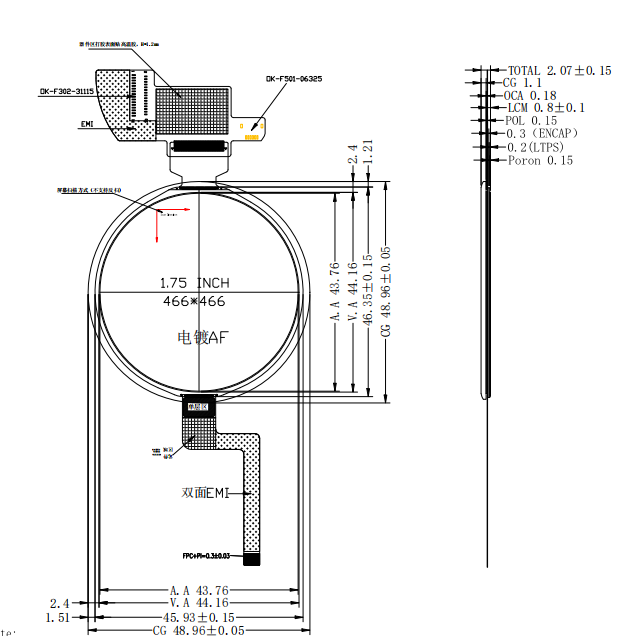

| Outline Dimension | 48.96(V)*48.96(W)*2.07(T) | mm |
| Active Area | 43.76(W)*43.76(H) | mm |
| Driver IC | CO5300/CST820B | |
| LCM Interface | QSPI/MIPI | |

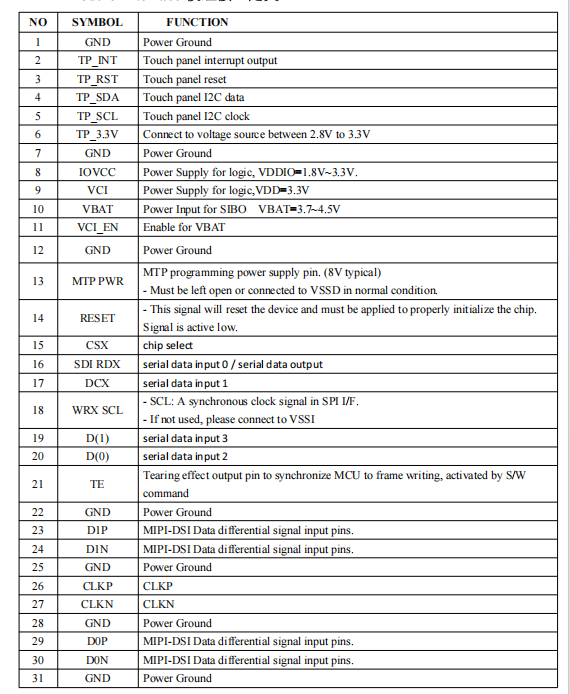

| Pin Number | 31Pin | |
| Luminance | 700 | cd/m2 |
| Connector Type | OK-F302-31115 | |
| Operation Temperature | -20 to 60 | |
| Storage Temperature | -30 to 65 |
