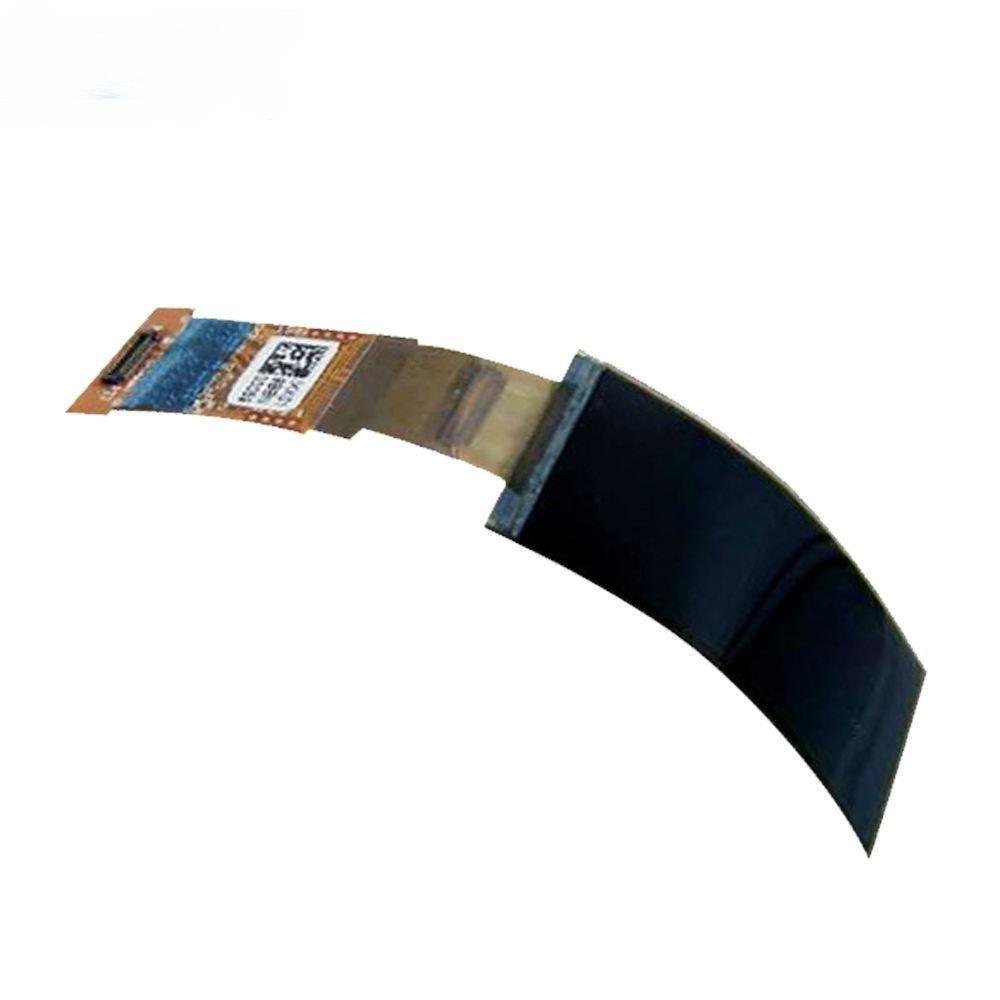

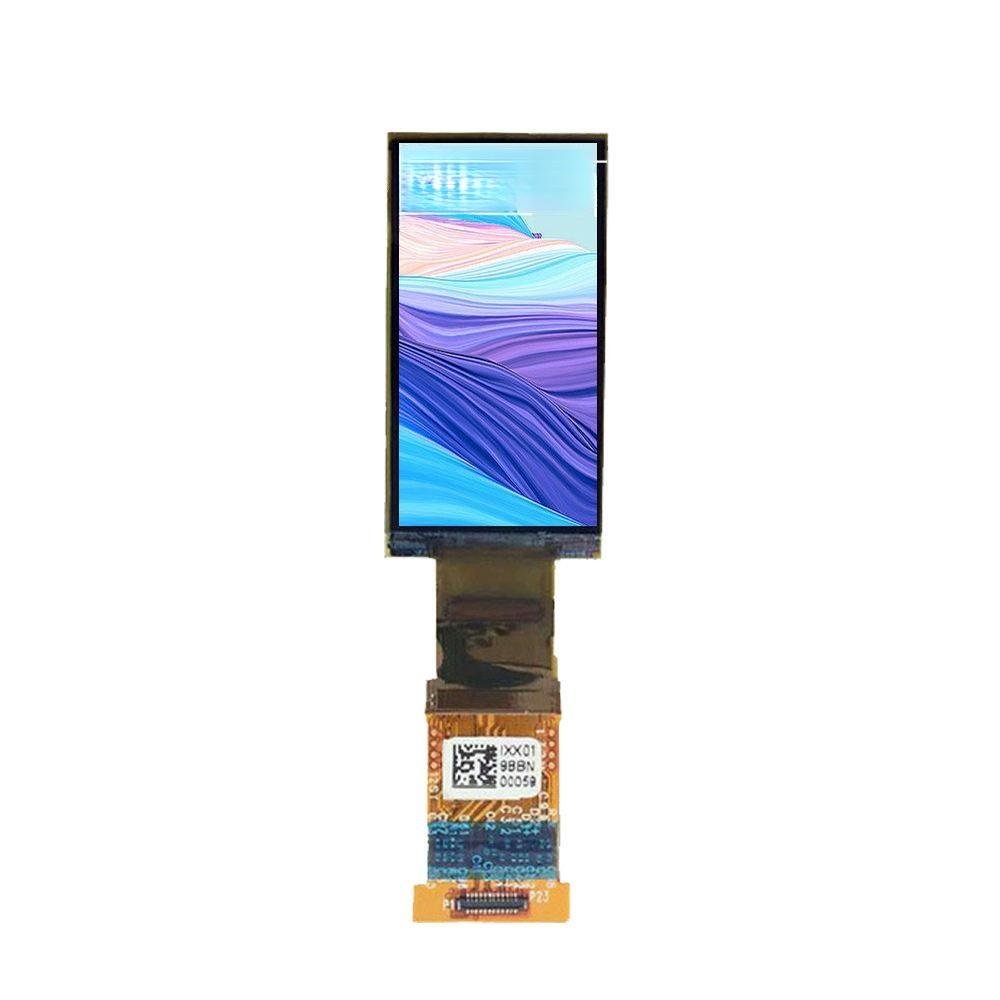

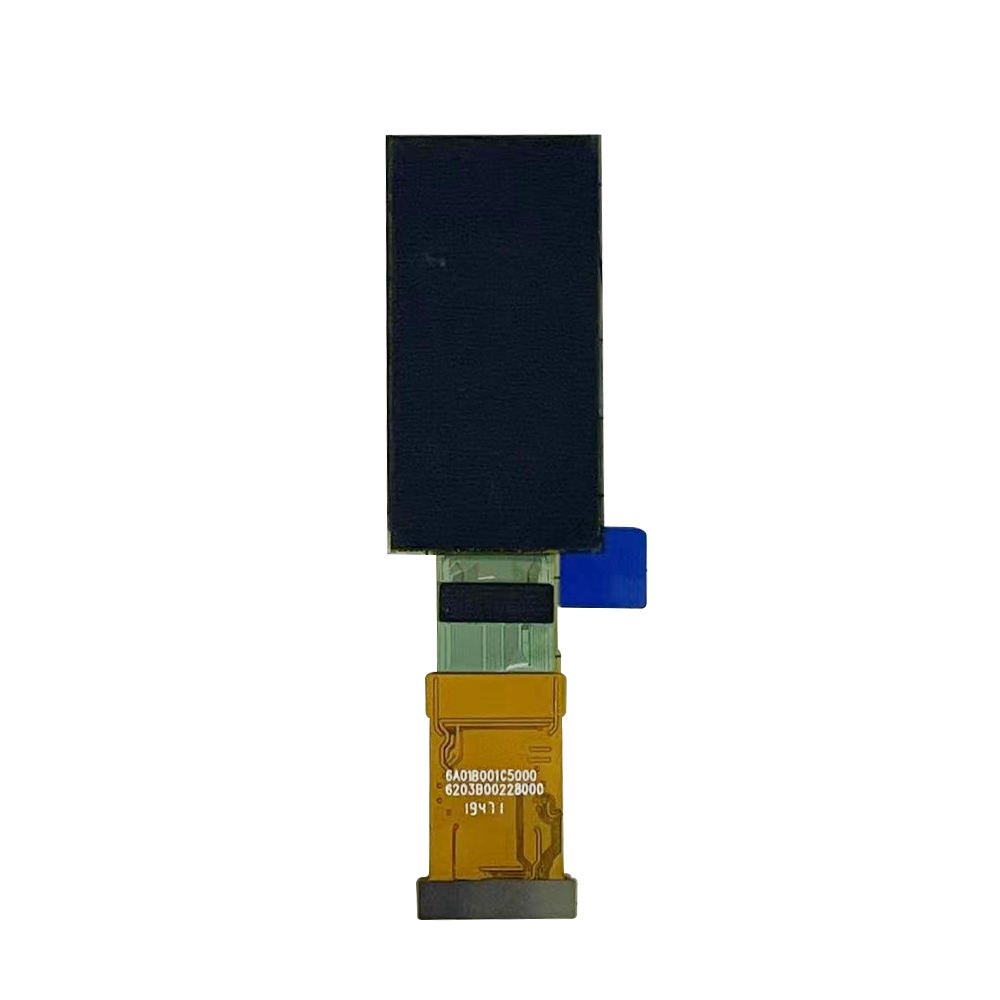

GL150FAM10A is a color-active matrix of an Organic light-emitting diode (OLED), which uses Low-Temperature Poly-silicon (LTPS) as a switching device. This panel has a 1.5-inch diagonally measured active display area with 120 x 240 resolutions. This product comprises an LTPS-AMOLED panel, a Polarizer, a driver IC(COF), and FPCa. The following describes the features of this product.
| Item No. | GL150FAM10A |
|---|---|
| MOQ | 5pcs |
| Lead Time | 7 Working Days For Samples. |
| Payment Term | Paypal, T/T |
| Statu | Production |
| Customization | Support |
| Availability | 3 to 5 Years Stable Supply |
GL150FAM10A is a color-active matrix of an Organic light-emitting diode (OLED), which uses Low-Temperature Poly-silicon (LTPS) as a switching device. This panel has a 1.5-inch diagonally measured active display area with 120 x 240 resolutions. This product comprises an LTPS-AMOLED panel, a Polarizer, a driver IC(COF), and FPCa. The following describes the features of this product.
| Features | Specification | Unit |
|---|---|---|
| Display Size(Diagonal) | 1.5 | inch |
| Display Colors | 16.7M | |
| Display Mode | Normally Black. | |
| Display Mode | Flexible AMOLED Panel | |
| Resolution | 120RGB*240 | |
| Outline Dimension | 20.12(W)x38.94(H)x0.71(D) | mm |
| Active Area | 16.92(W)×33.84 (H) | mm |
| Power Consumption | Panel power :122.5 | |
| LCM Interface | SPI/MIPI | |
| Pin Number | 24Pin | |
| Driver IC | RM69310 | |
| PPI | 180 | |
| Connector Part No | 20641-024E (I-PEX) | |
| User’s connector Part No | 20642-024E (I-PEX) | |
| Operation Temperature | -20 to 60 | |
| Storage Temperature | -30 to 70 |
