GL103AMN10A is a 1.03-inch diagonal, 2560(RGB) × 2560 dots active-matrix color OLED panel module based on single-crystal silicon transistors. This panel integrates the panel driver and logic driver and realizes small size, lightweight, low power consumption, and high resolution.
| Item No. | GL103AMN10A |
|---|---|
| MOQ | 1pc |
| Lead Time | 7 Working Days For Samples. |
| Payment Term | Paypal, T/T |
| Statu | Trial Production |
| Customization | Support |
| Availability | 5 Years Stable Supply |
GL103AMN10A is a 1.03-inch diagonal, 2560(RGB) × 2560 dots active-matrix color OLED panel module based on single-crystal silicon transistors. This panel integrates the panel driver and logic driver and realizes small size, lightweight, low power consumption, and high resolution.
| Features | Specification | Unit |
|---|---|---|
| Display Size(Diagonal) | 1.03 | inch |
| Model No | GL103AMN10A | |
| Number of dots | 5.76M (1600x1200x3) | |
| Resolution | 2560*2560 | Pixels |
| Luminance | 1800 | cd/m2 |
| Pixel Size | 6.3x 6.3 | μm |
| Frame Rate | 60~120 | Hz |
| Outline Dimension | 22.77*21.09*1.5 | mm |
| Useable Display Area | 18.432* 18.432 / 1.03'' diagonal | mm |
| Contrast Ratio | 100,000:1 typical | |
| Uniformity | > 85% | |
| Power Consumption | 500 | mW |
| Interface | MIPI (1port D-PHY) | |
| Gray Levels | 256 or 1024 | |
| Operating Temperature | -20°C to +70°C | |
| Storage Temperature | -40°C to +80°C | |
| Pin Number | 60Pin |
Shenzhen GL Electronics Co.,LTD
Please let us know the size and requirements you need so that we can recommend the best Micro OLED Display solution for you. For urgent enquiries, please contact us directly via What’s app(86) 181 2630 4824.

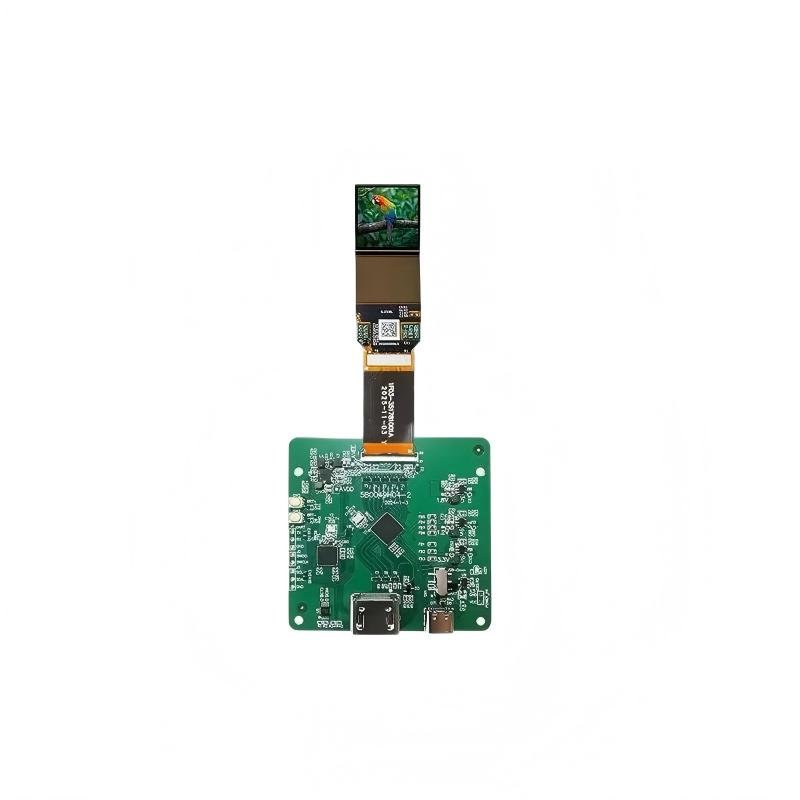

Accelerate your Micro OLED Display+ Control Board solution development! We provide one-stop service from sample to mass production to help you save time and cost.
