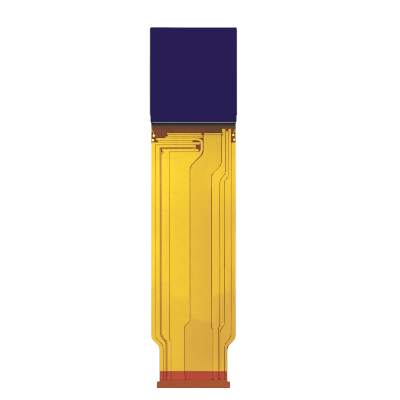

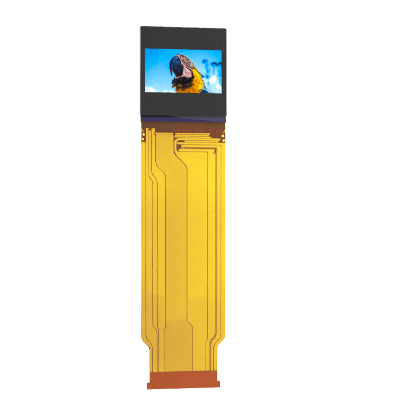

This display is a 0.83-inch diagonal, 2560(RGB) × 1440 dots active-matrix color OLED panel module based on single-crystal silicon transistors. This panel integrates the panel driver and logic driver and realizes small size, lightweight, low power consumption, and high resolution.

• Product Features:
• 2560 x 1440 Real RGB Resolution
• Frame rate: 30 to 90Hz
• The normal operation supports full-color mode: 16.7M colors (24-bit 8(R):8(G):8(B))
• Interface
  1. MIPI+ I2C
  2. MIPI DSI (Display Serial Interface) with 4 lanes, 1.2Gbps/Lane
  3. Support MIPI DSI Video mode: non-burst mode with sync pulse and non-burst mode with sync event
  4. Support Multi resolution:1920×1200(16:10)，1920×1080(16:9), 1600×1200(4:3) , 1280×1024(5:4), 1280×720(16:9) ,1024×768(4:3)

• Vertical/Horizontalscandirectioncontrol
• Orbit supported
• Wide range Brightness adjustment
• Normal/Rolling/Dimming mode
• Temperature compensation
• 3Powerinput:ELVDD(5.5v),ELVSS(-5v),VDDI(1.8v)

• Mechanical Features

• Product Application:

1. Virtual Reality Application(AR/VR)
2. Head-mounted displays(HMD)
3. Near-Eye Displays
4. Augmented Reality
5. Viewfinders
6. Rangefinder
