0.71inch Micro OLED Displays 1920*1080 Full HD LVDS Interface AR VR Head-mounted displays

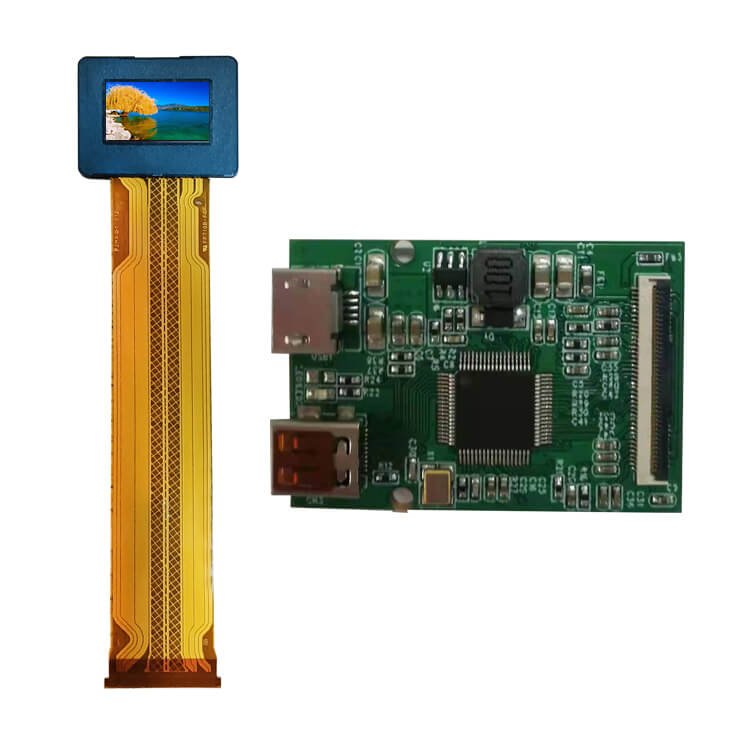

0.71inch microdisplay oled 1080*1920 full hd type c driver board ar vr amoled screen
0.71inch microdisplay oled 1080*1920 full hd type c driver board ar vr amoled screen
0.71inch microdisplay oled 1080*1920 full hd type c driver board ar vr amoled screen
0.71inch microdisplay oled 1080*1920 full hd type c driver board ar vr amoled screen
Category

The ECX335AF is a 0.71-inch diagonal, Full HD resolution(1920*1080), active-matrix color OLED(Organic Light Emitting Display) Panel module based on a single-crystal silicon backplane. The pixel circuits and driving IC are integrated into the silicon backplane to get a compact size and very low power consumption.

Additional information

Item No.

ECX335AF-6

MOQ

2pcs

Lead Time

7 Working Days For Samples.

Payment Term

Paypal, T/T

Statu

Mass Production

Customization

Support

Availability

5 Years Stable Supply

ASK FOR A QUOTE

Product Details

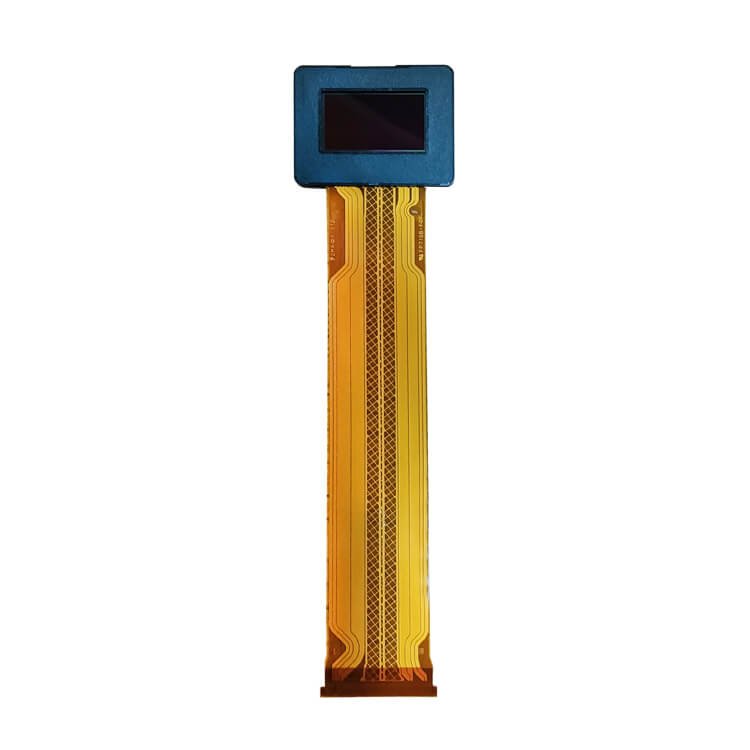

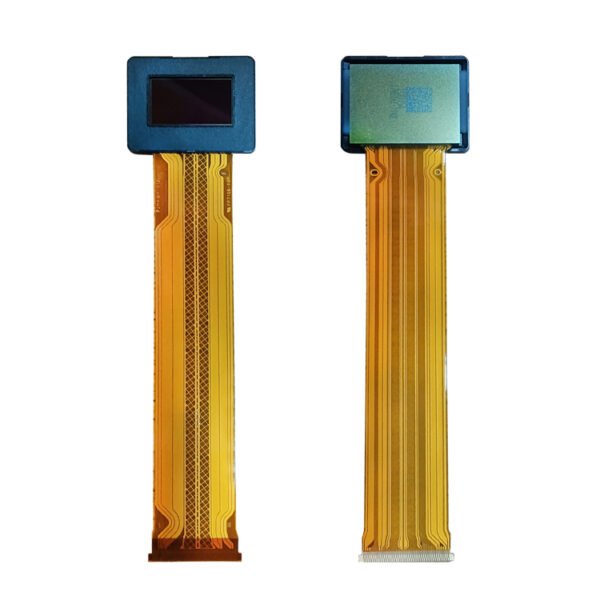

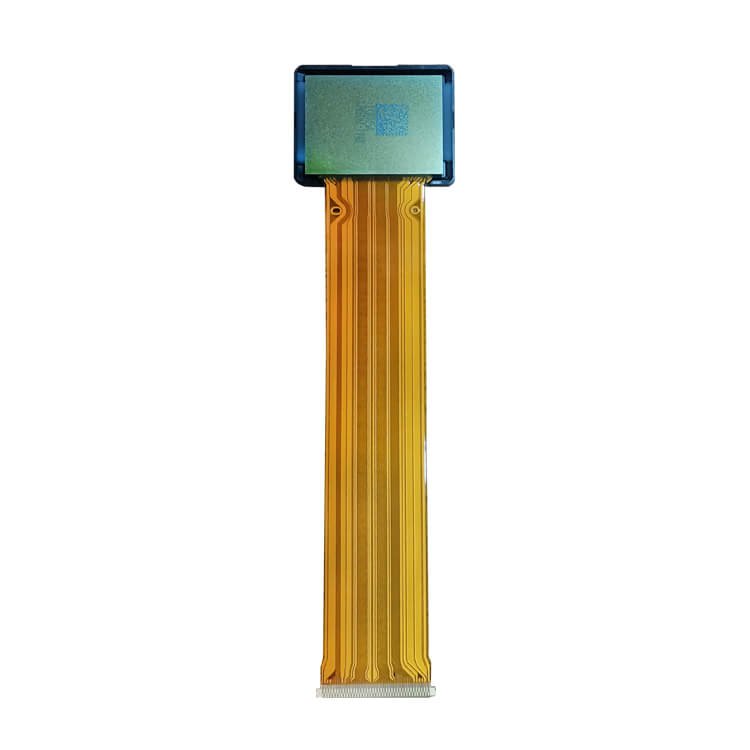

ECX335AF-6 is a 1.8 cm (type 0.71) diagonal, 1920(RGB) × 1080 dots active matrix color OLED panel module using single crystal silicon transistors. This panel incorporates a panel driver and logic driver and realizes small size, lightweight and high definition.



  • Product Description:
  1.  Small-size, high-resolution 0.71inch FHD Display
  2. Brand: SONY
  3. PPI=3135
  4. AP Operated Resolution 1920*1080 up to 90hz
  5. Full-Color mode, 16.7M Colors
  6. Fast response
  7. Thin and Light in weight
  8. Color enhancement
  9. High contrast mode
  10. IR compensation with 2D
  11. Idle mode for saving power
  12. Scan direction selection, up or down
  13. Interface: LVDS
  14. Pin Number: 81Pin
  15. Support VESA-DSC in-chip decoder(3X and 3.75X compression ratio)
  16. Support Scaling up 1.33*(1440*910 to 1920*1080) and 1.5*(1280*720 to 1920*1080)
  17. Sequential/Global emission



  • Product Application:
  1. Virtual Reality Application(AR/VR)
  2. Head-mounted displays(HMD)
  3. Near-Eye Displays etc.
  4. Viewfinders
  5. Very small monitors
  6. Near-Eye Displays etc.
