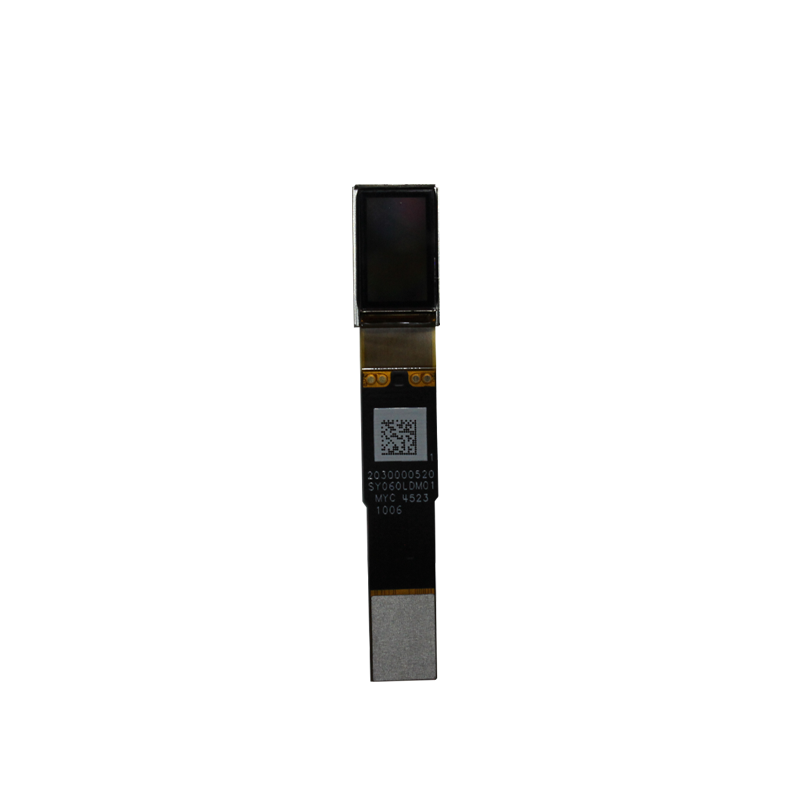

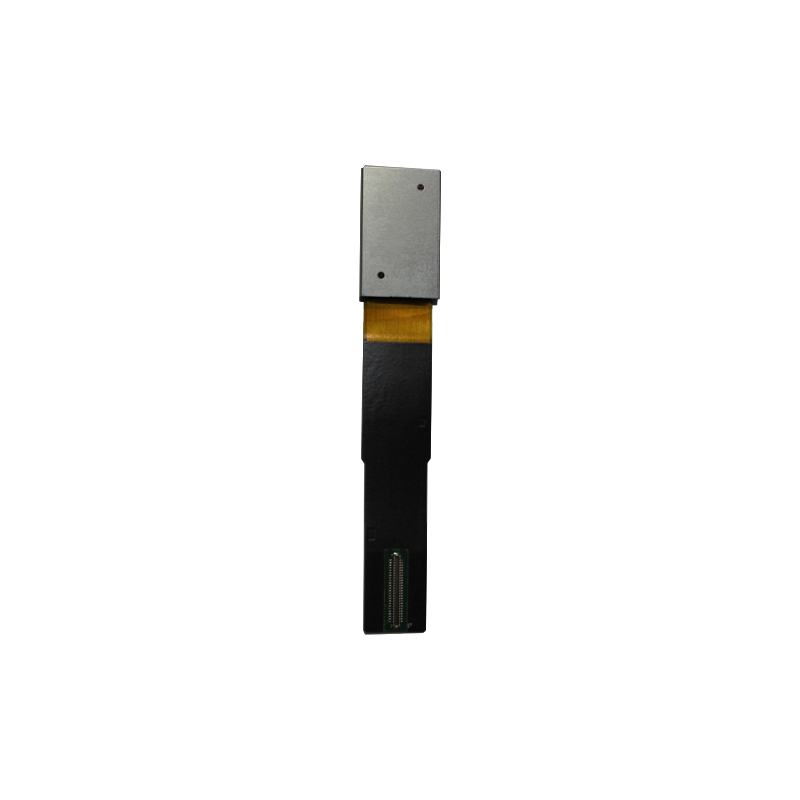

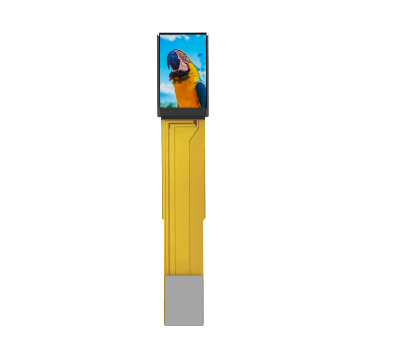

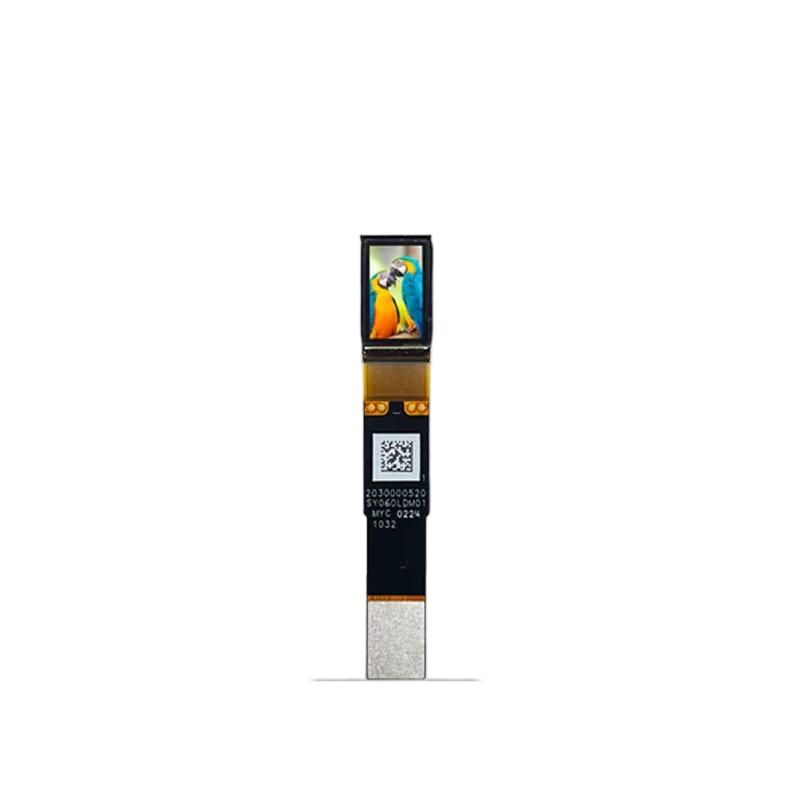

GL060AMN10A is a 0.6inch diagonal, 1920×1080 dots active-matrix color OLED panel module based on single-crystal, silicon transistors. The backplate integrates pixel circuits and displays driving circuits to get a compact size and low power consumption. GL060AMN10A supports FHD resolution with true RGB, 16:9 aspect ratio, brightness control, temperature compensation, high image quality, adjustable display area, etc. The interface of GL060AMN10A can support MIPI DPHY 1port / 4-ane. A VESA decoder with a compression ratio of 3x and 3.75x is supported. GL060AMN10A also supports 1.33x,1.5x, and 2x scaling up for input different resolutions. GL060AMN10A supports 16.77M display color, separated RGB gamma correction.

• Product Features:
• AP Operated Resolution

–Full resolution: 1920 x 1080

–Multi-resolution: (4*M, M=80~480) x RGB x (4*N, N=60~270)

• The normal operation supports full-color mode: 16.7M colors (24-bit 8(R):8(G):8(B))Interface
• Interface

–MIPI+ I2C

–MIPI DPHY v1.2 with one port (4 lanes), 1.2Gbps/Lane

–MIPI DSI v1.01 R11 Video mode

–Support VESA-DSC in-chip decoder (3×and 3.75×compression ratio)

• Frame rate：1920×1080 up to 120Hz

• Function

–Support scaling up 1.33× (1440×810 to 1920×1080) ,1.5× (1280×720 to 1920×1080) and 2× (960×540 to 1920 ×1080)

–Support normal Rolling emission and Global emission

— Temperature compensation

–Scan direction flip

• Power Structure: 4 input power or 5 input power

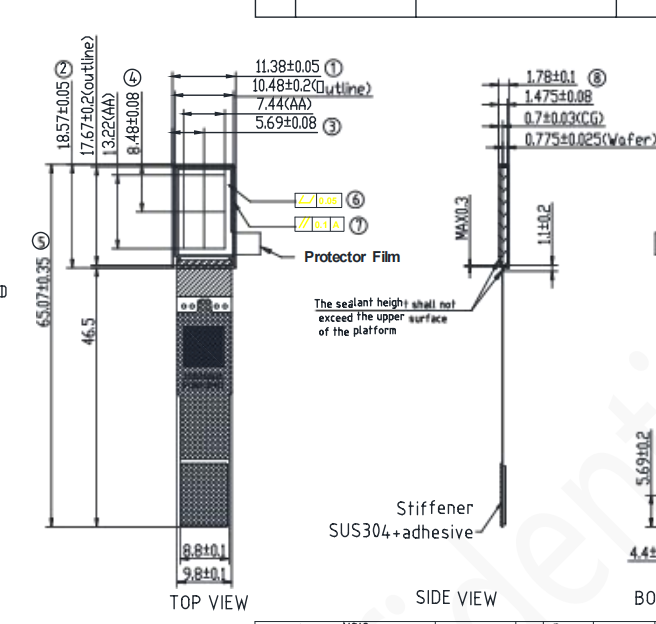

• Mechanical Features

• Product Application:

1. Virtual Reality Application(AR/VR)
2. Head-mounted displays(HMD)
3. Near-Eye Displays
4. Augmented Reality
5. Camera Viewfinders
6. Rangefinder
7. Night Vision
8. First Person View
9. Gimbal
10. Medical Device
