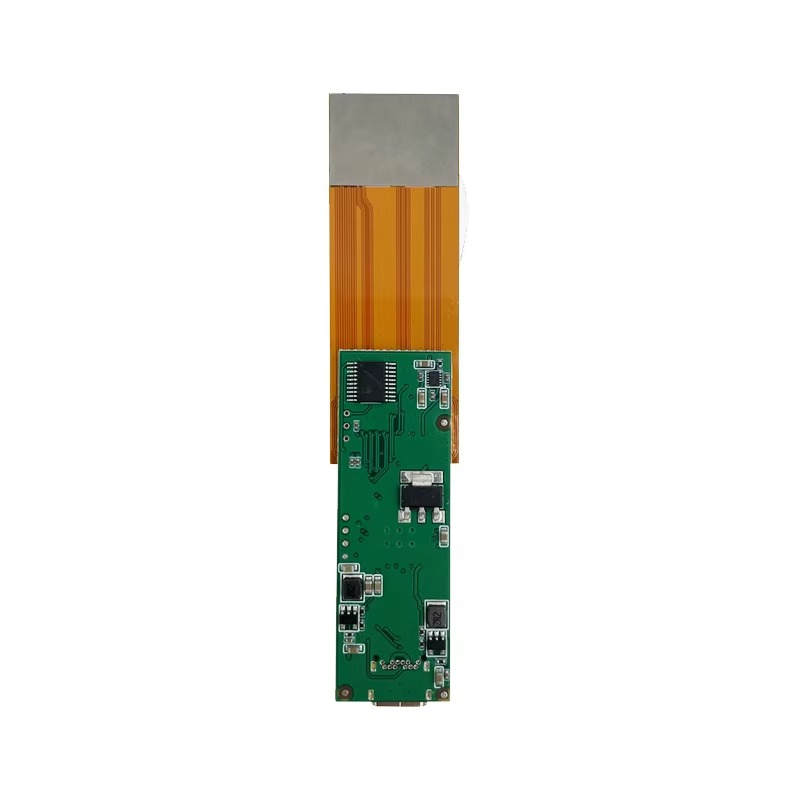

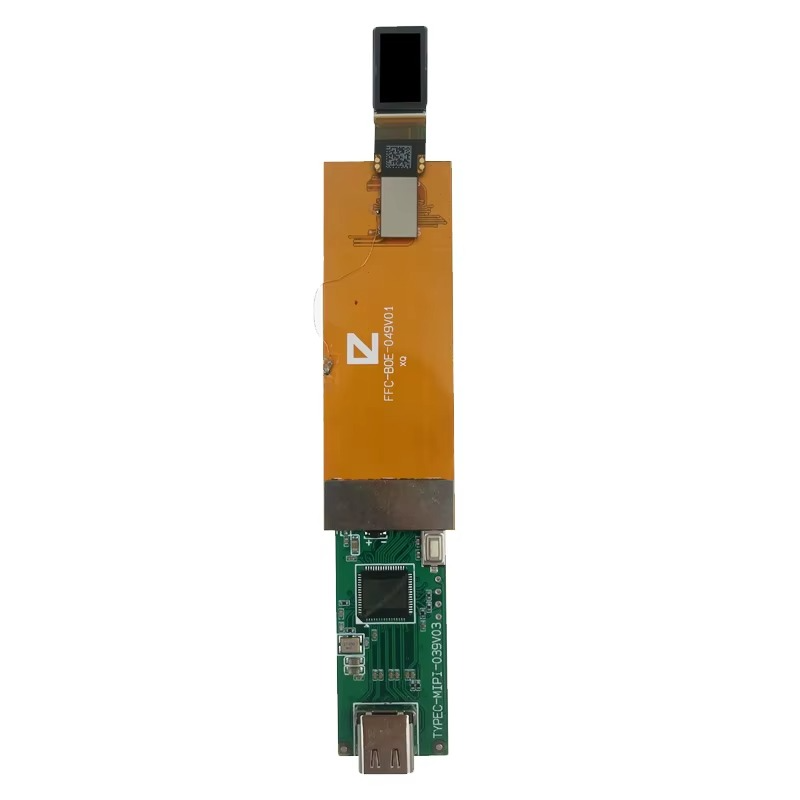

0.49inch Micro OLED Displays 1920*1080 Microdisplay TYPE-C Driver Board AR VR Headset

0.49inch micro oled displays 1920*1080 microdisplay type c driver board ar vr headset
0.49inch micro oled displays 1920*1080 microdisplay type c driver board ar vr headset
0.49inch micro oled displays 1920*1080 microdisplay type c driver board ar vr headset
0.49inch micro oled displays 1920*1080 microdisplay type c driver board ar vr headset
0.49inch micro oled displays 1920*1080 microdisplay type c driver board ar vr headset
Category

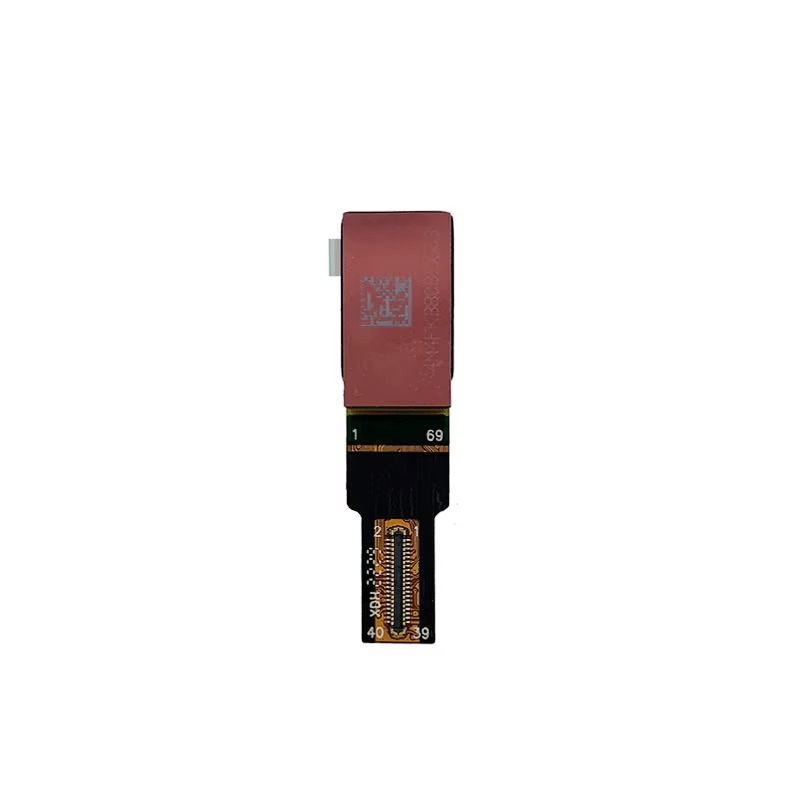

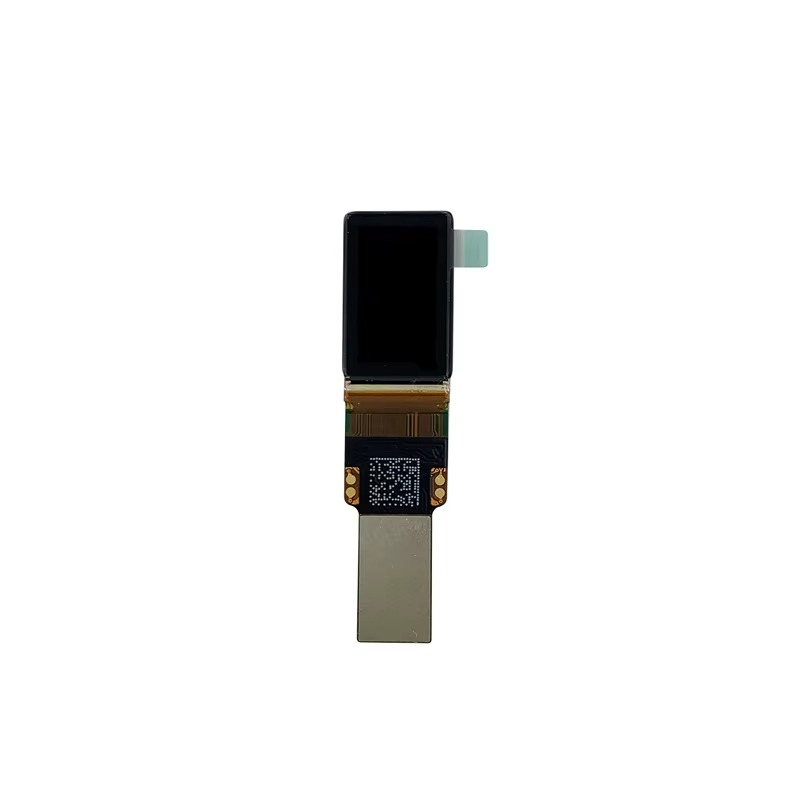

GL049AMN11A is a 0.49 inch diagonal, FHD resolution (1920 ×1080), active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon backplane. The pixel circuits and driving IC are integrated on the silicon backplane to get the compact size and very low power consumption.

Additional information

Item No.

GL049AMN11A

MOQ

1pc

Lead Time

7 Working Days For Samples.

Payment Term

Paypal, T/T

Statu

Trial Production

Customization

Support

Availability

5 Years Stable Supply

ASK FOR A QUOTE

Product Details



GL049AMN11A is a 0.49 inch diagonal, FHD resolution (1920 ×1080), active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon backplane. The pixel circuits and driving IC are integrated on the silicon backplane to get the compact size and very low power consumption.

  • Product Features:
  1.  Small-size, high resolution 0.49″ FHD Display
  2. AP Operated Resolution 1920 × 1080 PPI=4496
  3.  Frame rate supports 50~100Hz
  4. Normal operation supports full color mode , 16.7M colors
  5. Fast response
  6. Thin and light in weight
  7.  Color enhancement
  8. High contrast
  9. IR compensation with 2D
  10. Idle mode for save power
  11. Scan direction selection, up or down and right or left
  12. InterfaceSupport MIPI only or MIPI+I2CSupport VESA-DSC in-chip decoder (3X and 3.75X compression ratio)Support scaling up 1.33 X (1440 × 810 to 1920 × 1080) and 1.5 X (1280 × 720 to 1920 × 1080) and 2 X ( 960

    × 540 to 1920 × 1080)

  13. Sequential emission
  14. Support 8bit/10bit input pattern format

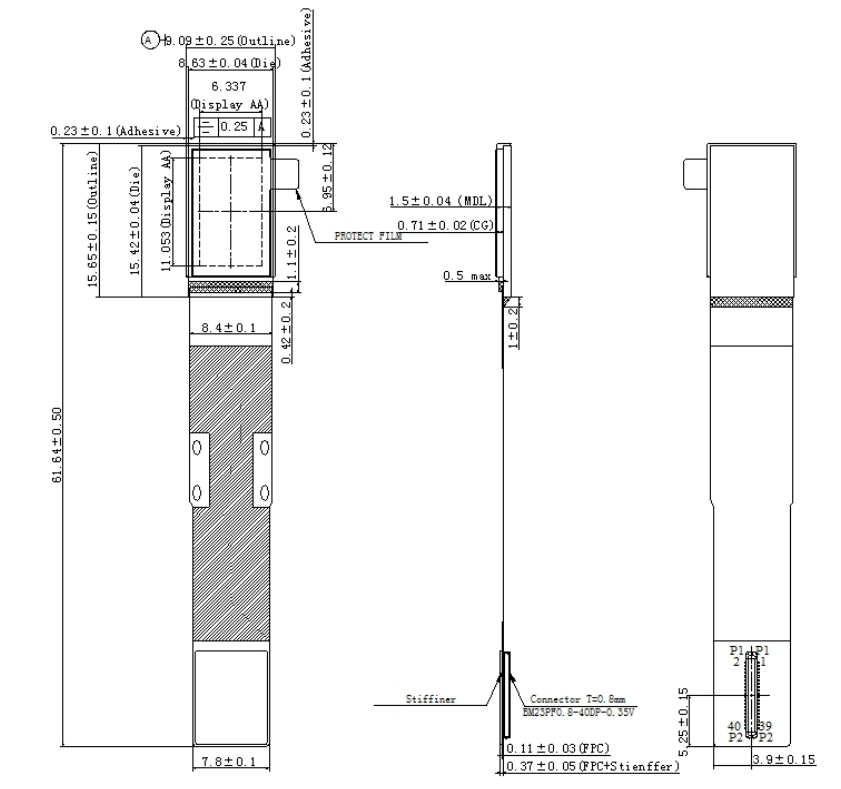

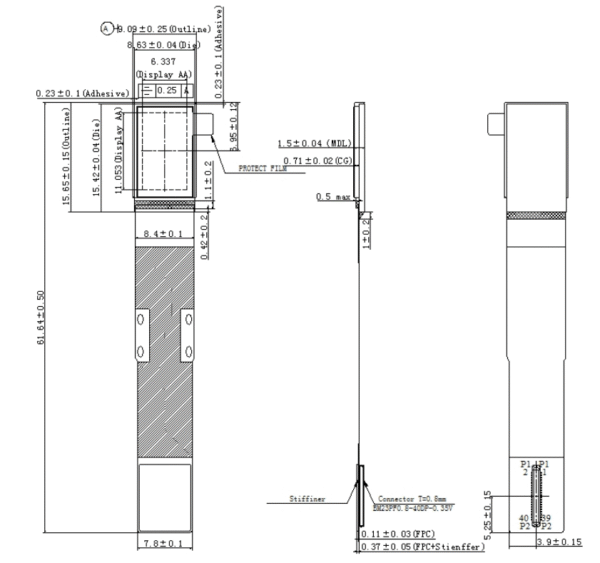

  • Mechanical Features
FeaturesSpecificationUnit
Display Size(Diagonal)0.49inch
Model NoGL049AMN10A
PPI5644
Resolution1920x1080x2(2/3 SPR)
View Direction55/55/45/45
Outline Dimension15.68*9.09*1.5mm
Active Area10.783* 6.065mm
Display Colors16.7M
LCM Interface
MIPI,MIPI+I2C
LCM Brightness1800(TY)/3000(Max)cd/m2
Contrast Ratio50000:1
Uniformity> 85%
Power Consumption
(3 power
mode,90hz,1800nits, VESA
on, Rolling mode)		468mW
Gray Levels256 or 1024
InterfaceMIPI
Frame Rate60Hz~90Hz
Operating Temperature-20°C to +70°C
Storage Temperature-40°C to +80°C



  • Product Application:
  1. Virtual Reality Application(AR/VR)
  2. Head-mounted displays(HMD)
  3. Near-Eye Displays
  4. Augmented Reality
  5. Viewfinders
