0.39inch Micro OLED Display 1920*1080 FHD 1080P AMOLED Near Eye microdisplays

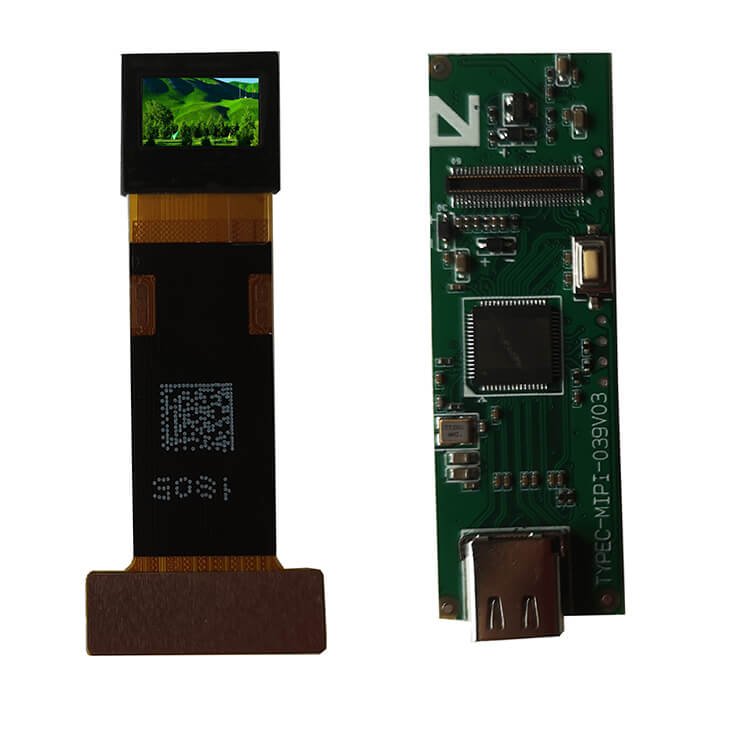

0.39inch m

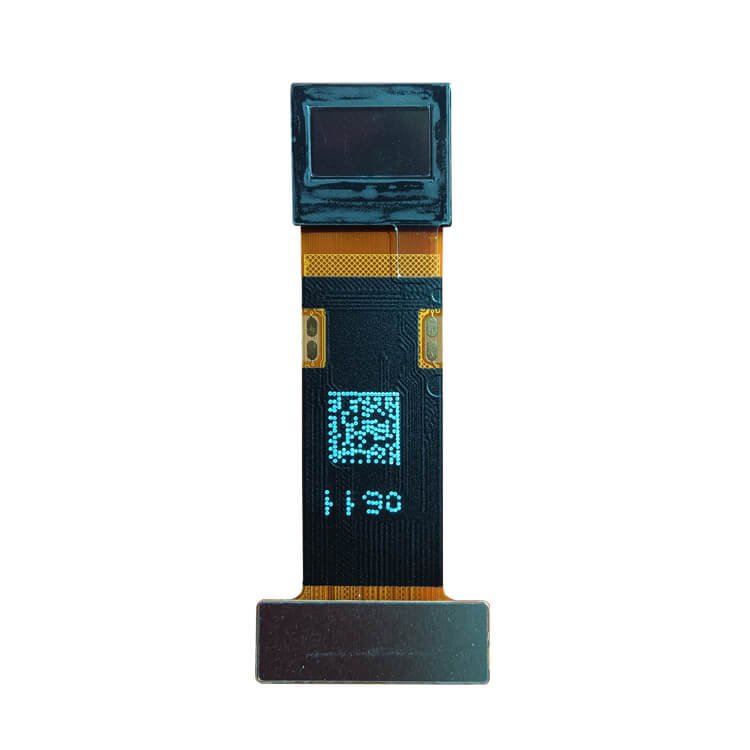

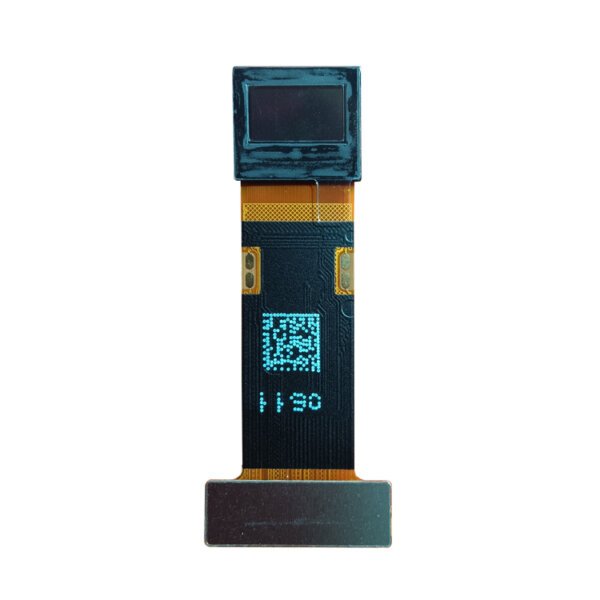

0.39inch micro oled screen ar vr

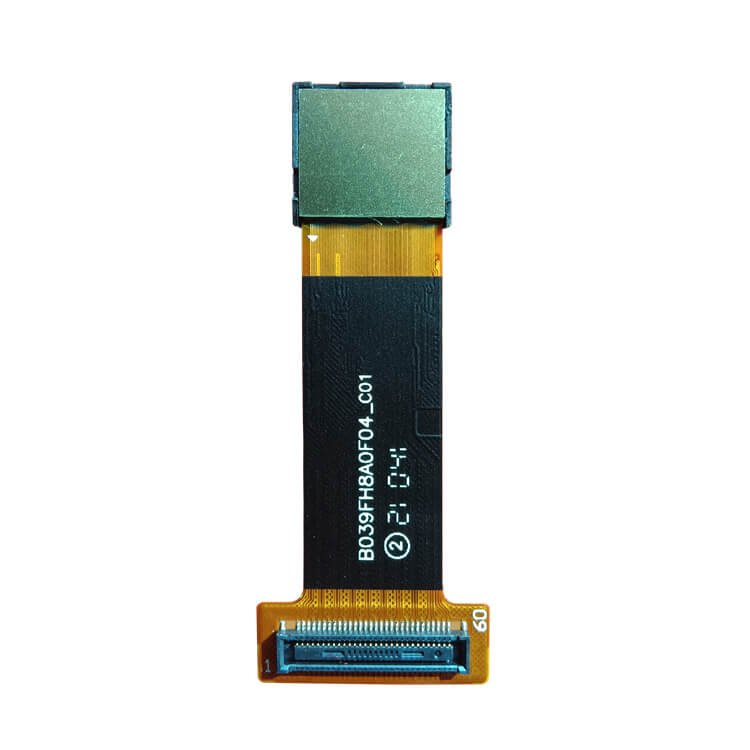

0.39inch vr ar oled display

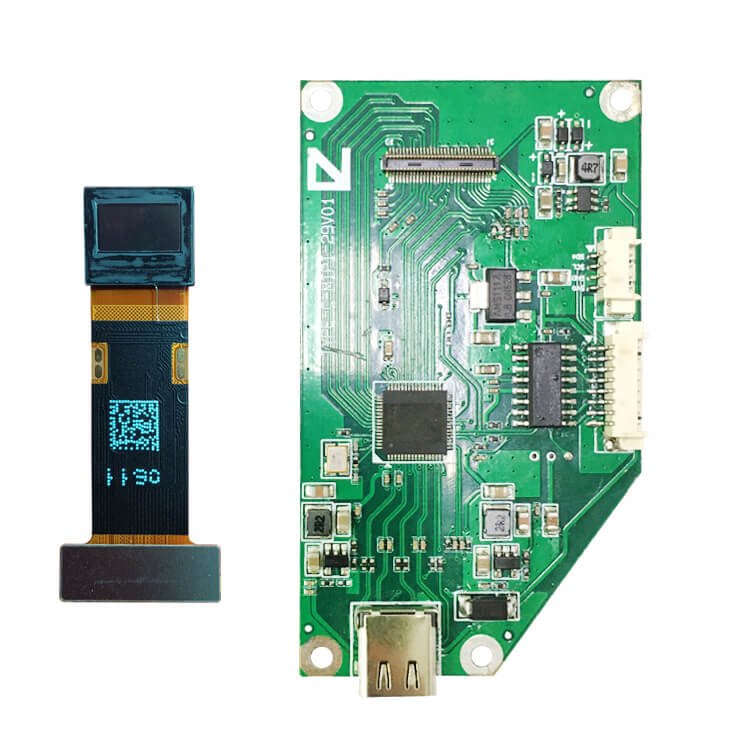

0.39inch full hd oled with hdmi driver
Category

GL039AMN10A is a 0.39inch(1cm) diagonal, color  Full HD resolution(1920*1080), active-matrix color OLED(Organic Light Emitting Display) panel module based on a single-crystal silicon backplane. The pixel circuits and driving IC are integrated into the silicon backplane to get a compact size and very low power consumption.

Additional information

Item No.

GL039AMN10A

MOQ

1pc

Lead Time

7 Working Days For Samples.

Payment Term

Paypal, T/T

Statu

Trial Production

Customization

Support

Availability

5 Years Stable Supply

ASK FOR A QUOTE

Product Details



GL039AMN10A is a 0.39inch(1cm) diagonal, color  Full HD resolution(1920*1080), active-matrix color OLED(Organic Light Emitting Display) panel module based on a single-crystal silicon backplane. The pixel circuits and driving IC are integrated into the silicon backplane to get a compact size and very low power consumption.



  • Product Features:
  1.  Small-size, high resolution 0.39 FHD Display
  2. PPI=5644
  3. AP Operated Resolution(8*M, M=40-240)*RGB(8*N, N=30-135)
  4. Full-Color mode, 16.7M Colors
  5. Fast response
  6. Thin and Light in weight
  7. Color enhancement, Sharpness enhancement
  8. High contrast mode
  9. High Fluency mode
  10. Power-saving(PS) mode
  11. Scan direction selection, up or down
  12. Interface, Support MIPI only or MIPI+I2C



  • Mechanical Features
FeaturesSpecificationUnit
Display Size(Diagonal)0.39inch
BrandBOE
PPI5644
ResolutionFHD 1920*1080
View Direction55/55/45/45
Outline Dimension28.64*32.26*0.7mmmm
Active Area
8.7495*4.9689mm		mm
Display Colors16.7M
LCM Interface
MIPI,MIPI+I2C
LCM Brightness
300cd/m2		cd/m2



  • Product Application:
  1. Virtual Reality Application(AR/VR)
  2. Head-mounted displays(HMD)
  3. Near-Eye Displays etc.
